Woodcraft Dirty Bomb Germanium Fuzz w/Original Soviet Union Transistors- Natural Wood

All-Analog Signal Processing, True Bypass footswitch

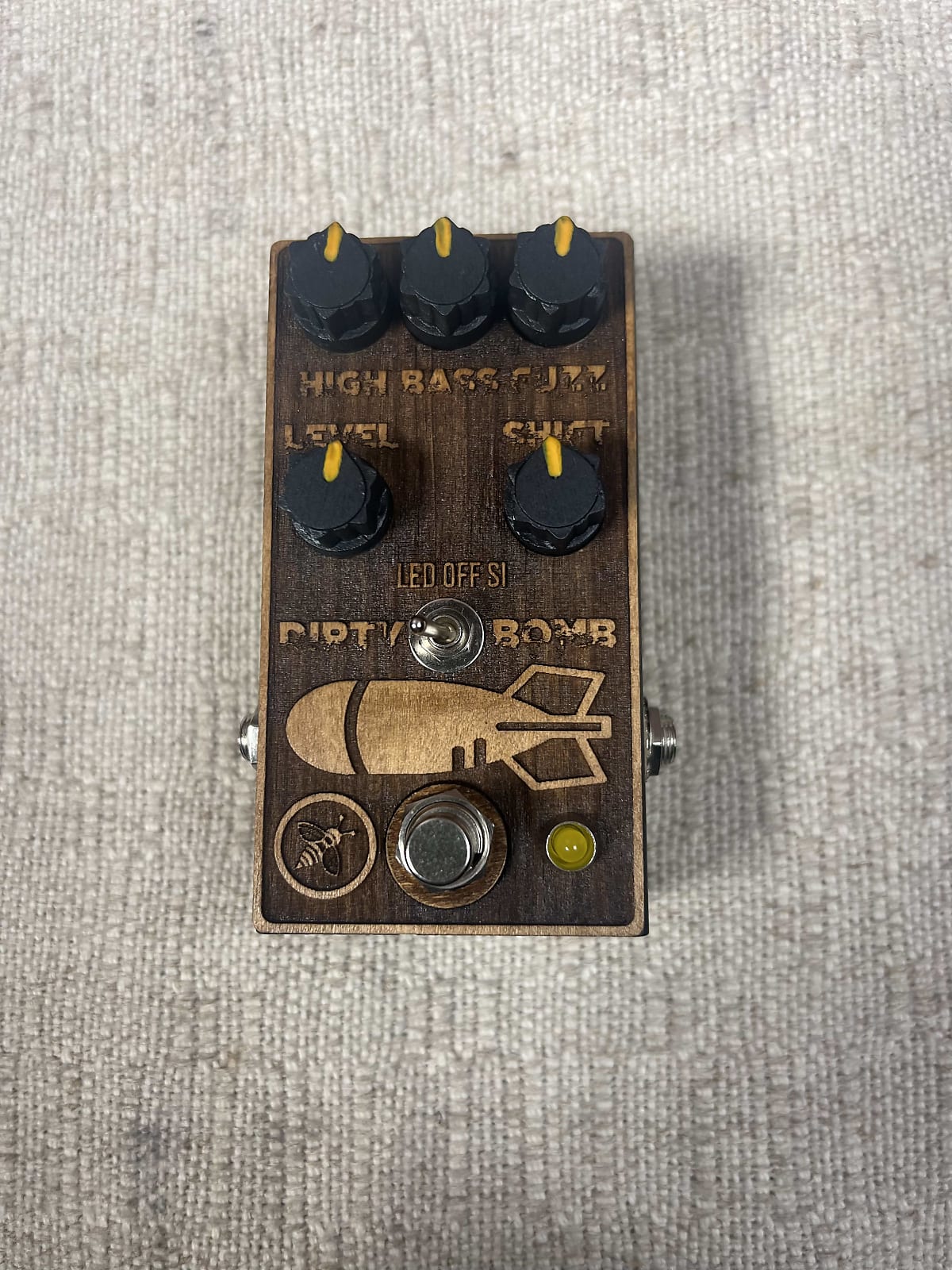

Woodcraft ZZOYD DIRTY BOMB GERMANIUM FUZZ

This Fuzz has 4 original Germanium Soviet transistors, and has an Explosive sound, that’s very fat, and punchy, but can also be dialed back for a more traditional clean fuzz tone

LEVEL – Controls the overall Volume of the pedal. Left is minimum level, right is maximum.

HIGH – Controls the highs. Right is brighter, left is less.

BASS – Controls the lows. Right is more bass, left is less.

FUZZ – Controls the level of Gain/Fuzz. Left is minimum level, right is maximum.

SHIFT – Change different character of sound. When turned to the left, gets rude texture, sharp sound,

mid position close to the octave sound, when turned to the right – more smooth, classic mk2 sound!

DIODES TOGGLE – Toggle between the different clipping diodes: leds or silicon. Mid position is off diodes.

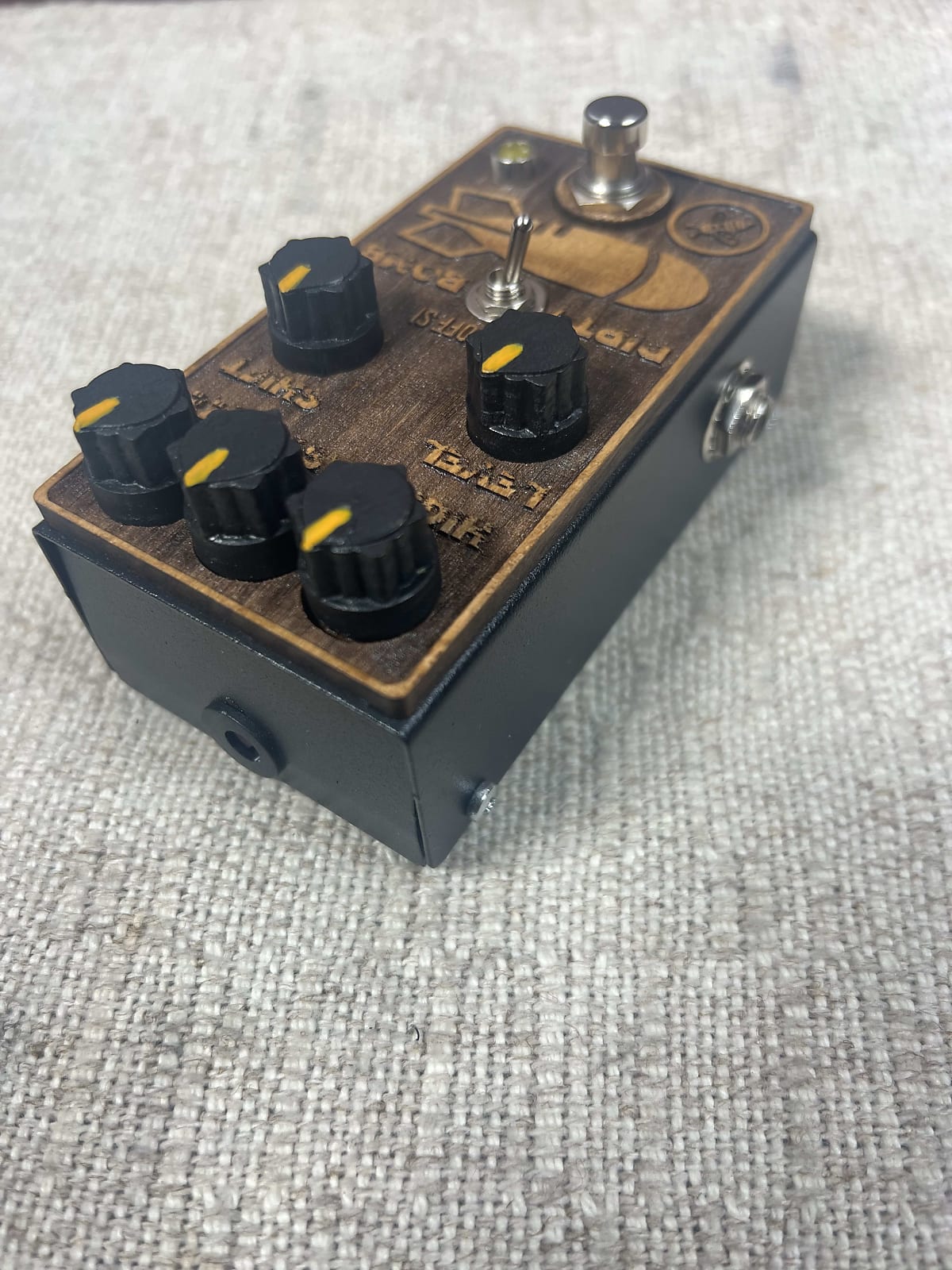

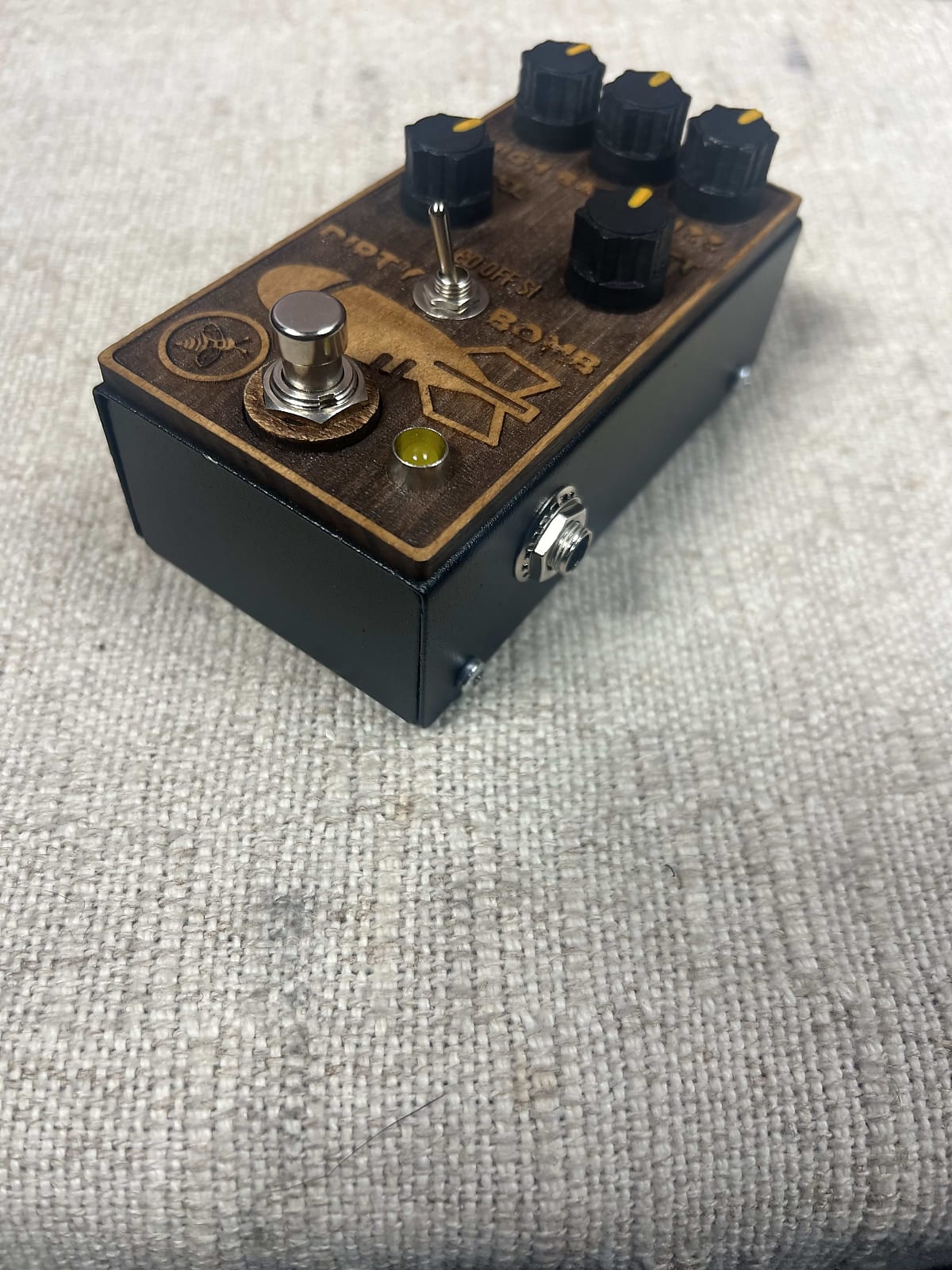

JACKS

INPUT – 1/4” jack on the top right side of the pedal.

OUTPUT – 1/4” jack on the top left side of the pedal.

POWER – Uses 9V DC Negative Center. Do not use more than 9V DC.

There is a protection diode inside to avoid a reverse polarity damage!

You can use 9v battery outside with battery adapter.

3,5 mA consumption.

Power Requirements

No 9V battery slot inside, use external 9v battery plug adapter or regulated 9VDC power supply with Toroidal transformer,

like Electro-Harmonix, Dan-Electro, Boss, Etc…

(5.5 x 2.1 mm plug, wired center-negative)

NOT newest switching power supply
