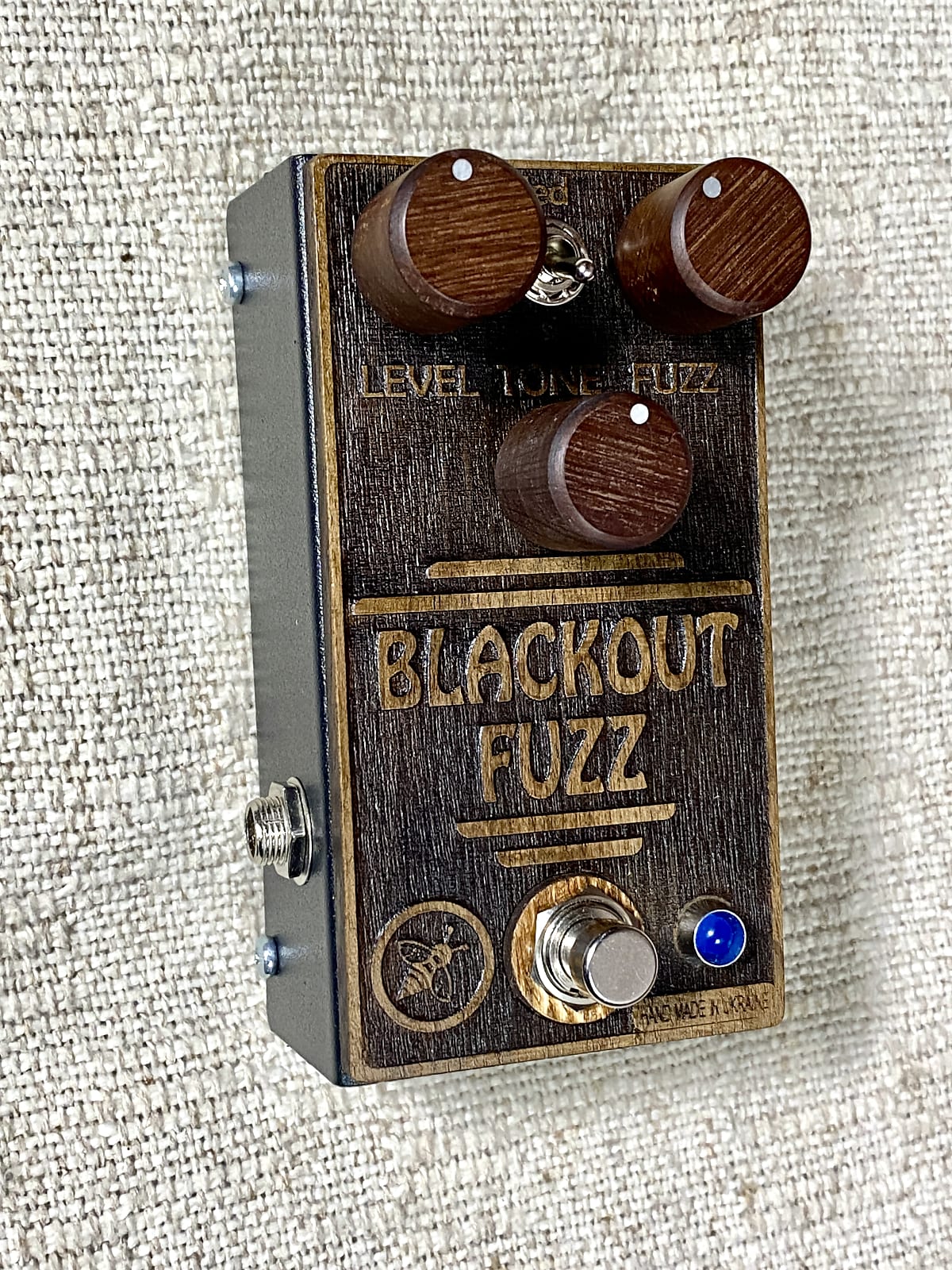

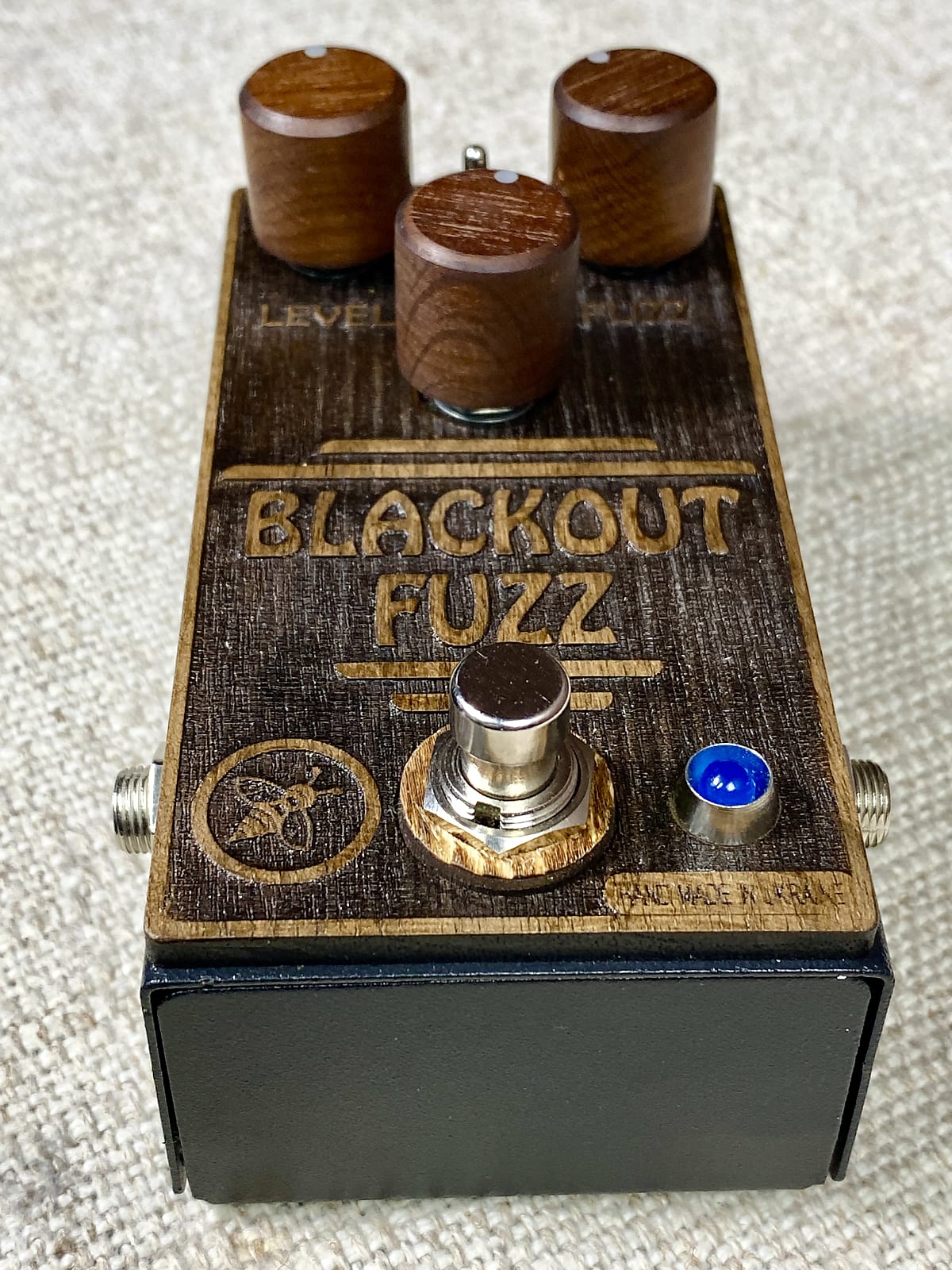

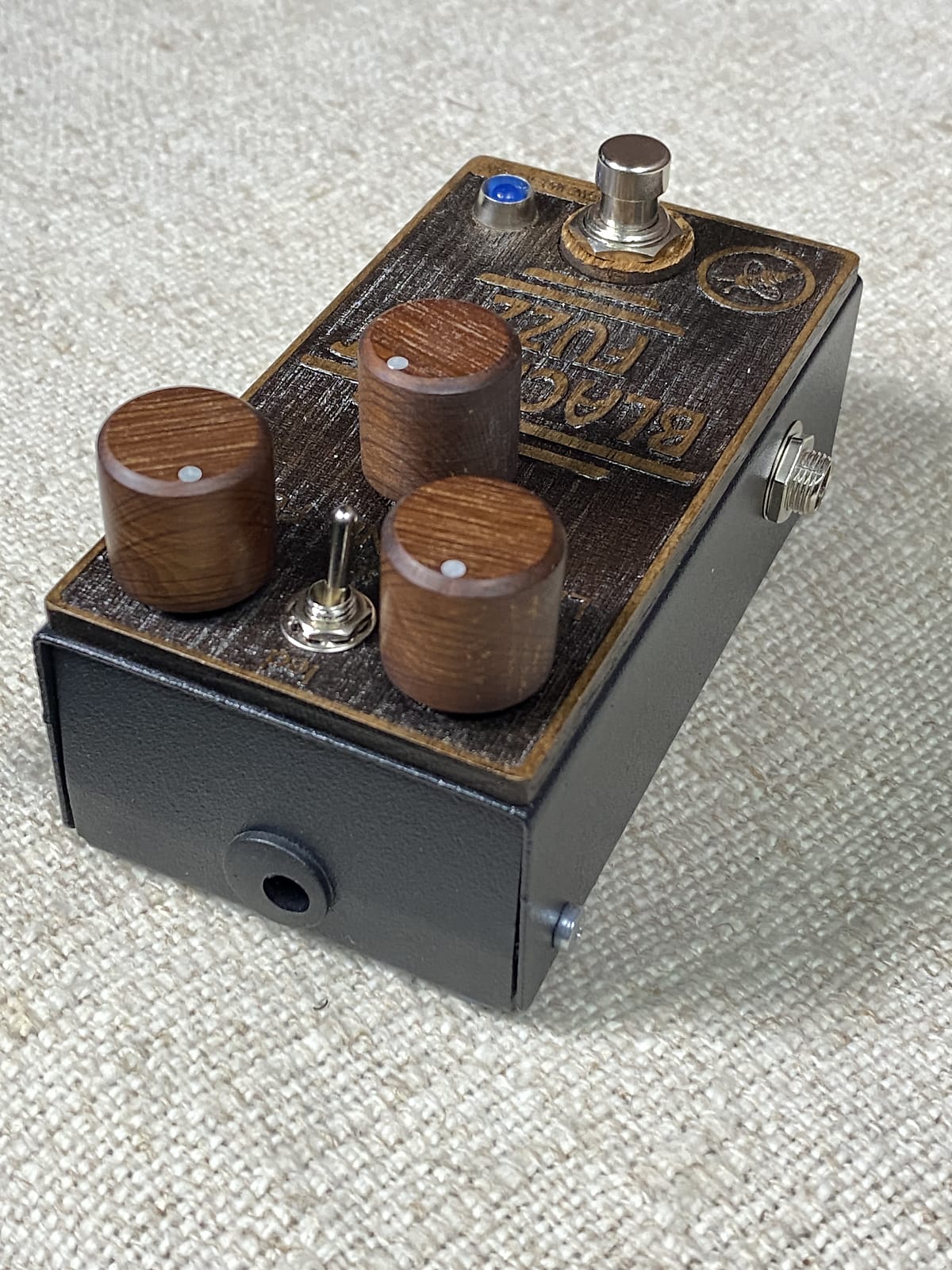

Woodcraft Blackout Germanium Fuzz with Original Soviet Union Transistors – Natural Wood

BLACKOUT GERMANIUM FUZZ WITH ORIGINAL SOVIET UNION TRANSISTORS

All-Analog Signal Processing, True Bypass footswitch

Preorder ETA 2-3 weeks

This Blackout Germanium Fuzz based on the old 60’s “Sekova” fuzz schematic with real unique overtones, plus added two stages preamp From mk3 Tonebender!

LEVEL – Controls the overall Volume of the pedal. Left is minimum level, right is maximum.

TONE – Controls the amount of brightness. Left is darker, right is brighter.

FUZZ – Controls the level of Gain/Fuzz. Left is minimum level, right is maximum.

DIODES TOGGLE – Toggle between the different clipping diodes: led’s or silicon.

JACKS

INPUT – 1/4” jack on the top right side of the pedal.

OUTPUT – 1/4” jack on the top left side of the pedal.

POWER – Uses 9V DC Negative Center. Do not use more than 9V DC.

There is a protection diode inside to avoid a reverse polarity!

You can use 9v battery outside with battery adapter.

3,5 mA consumption.

Power Requirements

No 9V battery slot inside, use external 9v battery plug adapter or regulated 9VDC power supply with Toroidal transformer,

like Electro-Harmonix, Dan-Electro, Boss, Etc…

(5.5 x 2.1 mm plug, wired center-negative)

NOT newest switching power supply
